Future-proof straw boiler for Auning District Heating

Improved combustion process and reduced NOx go hand in hand with environmental regulations

The new Verdo straw boiler line delivered to Auning district heating plant is characterized by high efficiency and the possibility of burning straw of various heating value.

In 2019, stricter environmental regulations were introduced in Denmark. One of them was the reduction of emissions of nitrogen oxides (NOx). To meet those requirements, Verdo implemented necessary changes in the combustion process together with an improved and optimized control system for the whole Auning district heating plant. In addition, the entire installation is future-proof, which means that it can be expanded, and its efficiency increased at any time in the future.

A new straw boiler plant in the Auning district heating plant is future-proof. The building and boiler line are designed so that at any time in the future they can be expanded, and the installation efficiency doubled. John Martin Myrup, Sales Manager, Verdo

Future-proof control system

One of the components of the boiler system supplied by Verdo is the control system, which has been designed and integrated in a way allowing the heating plant in Auning to expand with another heat installation, e.g. solar installation.


"We appreciate that Verdo offers a long-term perspective. The entire installation together with the control system are prepared for any future expansion. Verdo's future-proof way of thinking will certainly encourage us to cooperate on future projects," said Hans Jørgen Larsen, Operations Director, Auning Heating.

Straw from local fields used as fuel

The Auning District Heating decided to replace the old boiler from 2001. Due to an easy access to straw as fuel, the choice fell on the straw fired boiler. Obtaining straw from local farms not only guarantees easy access to fuel and savings in transportation, but also supports the labour market by providing employment for local residents. With 10-11,000 tons of straw burnt during the year, the whole operation generates 16-19 jobs.

The reason behind choosing fired boiler was the availability of biomass and tangible environmental benefits. Biomass is obtained from the overproduction of straw, and ash from biomass combustion is used in the local fields as a valuable fertilizer. The use of ash for fertilizing purposes both enriches the soil with nutrients and promotes a sustainable way of managing resources.

Advantages of the new straw boiler



  • Increased efficiency
  • Meets stricter environmental regulations
  • Handling straw different qualities
  • Future-proof capacity and technology

Straw emits the same amount of CO2, whether it’s left in the fields to rot or whether it’s burnt. The calculation is quite simple, so to say.   Hans Jørgen Larsen, Operations Manager, Auning District Heating Plant

Key facts

  • Straw boiler/district heating plant output: 12 MW
  • Operating temperature: 98 degrees
  • Return temperature: 40 degrees
  • Design temperature: 110 degrees
  • Fuel: straw from Danish fields
  • Boiler type: Verdo Strawmaster
  • Design pressure: 6 bar
  • Efficiency: >91%



Let's start the dialogue

John Martin Myrup

Sales Manager | Energy Plants, biomass

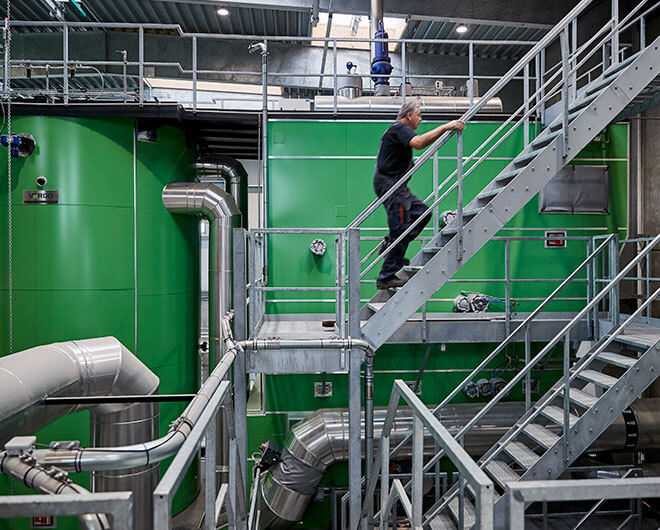

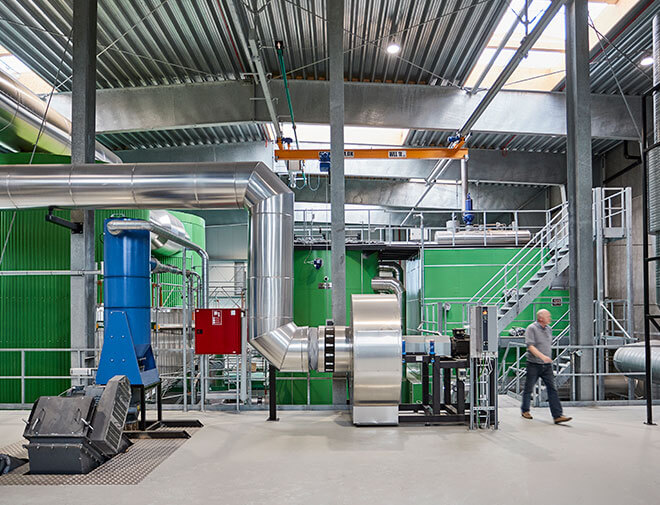

Photos of the new straw boiler line
