CIREX pressurisation unit
- for large sealed systems
Optimise the way you use your heating system
CIREX keeps the pressure up
If you need a reliable heating system for your district heating and industrial installations or a frost-proof system for your ground source and solar heating installation, the CIREX pressurisation unit is a unique solution for you.
The CIREX unit is self-contained, with expansion tank, safety equipment, controller and everything needed to maintain the operating pressure in the system.
Technical specifications of CIREX
- Pump output 3 m3 /h at 3.2 barg maximum
- Operating temperature of up to 90°C (but the membrane must not be exposed to continuous temperatures above 70°C)
- 3 x 400 V, 50 Hz, up to 4 A fuse
- Colour - RAL 6018
- Options: Different pump output, double pump or special tank size
The tank size of the CIREX unit is designed for a capacity of 3-4% of the volume of the system as a whole.
In addition to the sizes shown, Verdo also produces CIREX pressurisation units up to 30,000 l. We are of course happy to receive your specific request.
See model specifications

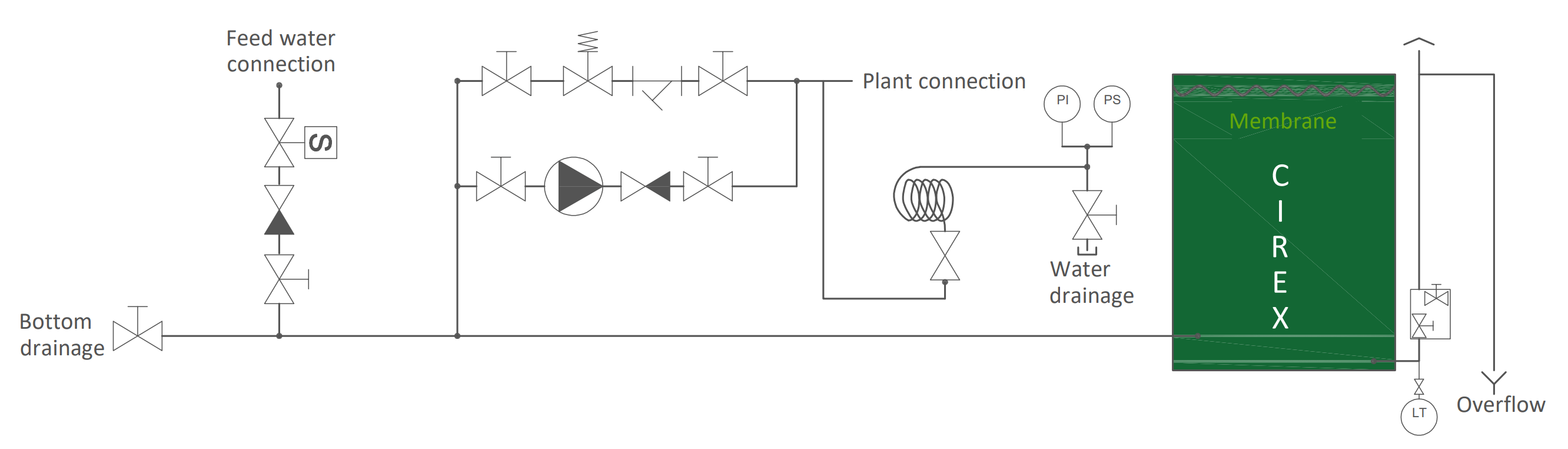

PI-diagram of the system
A pressurisation unit brings several benefits - both operationally and financially.

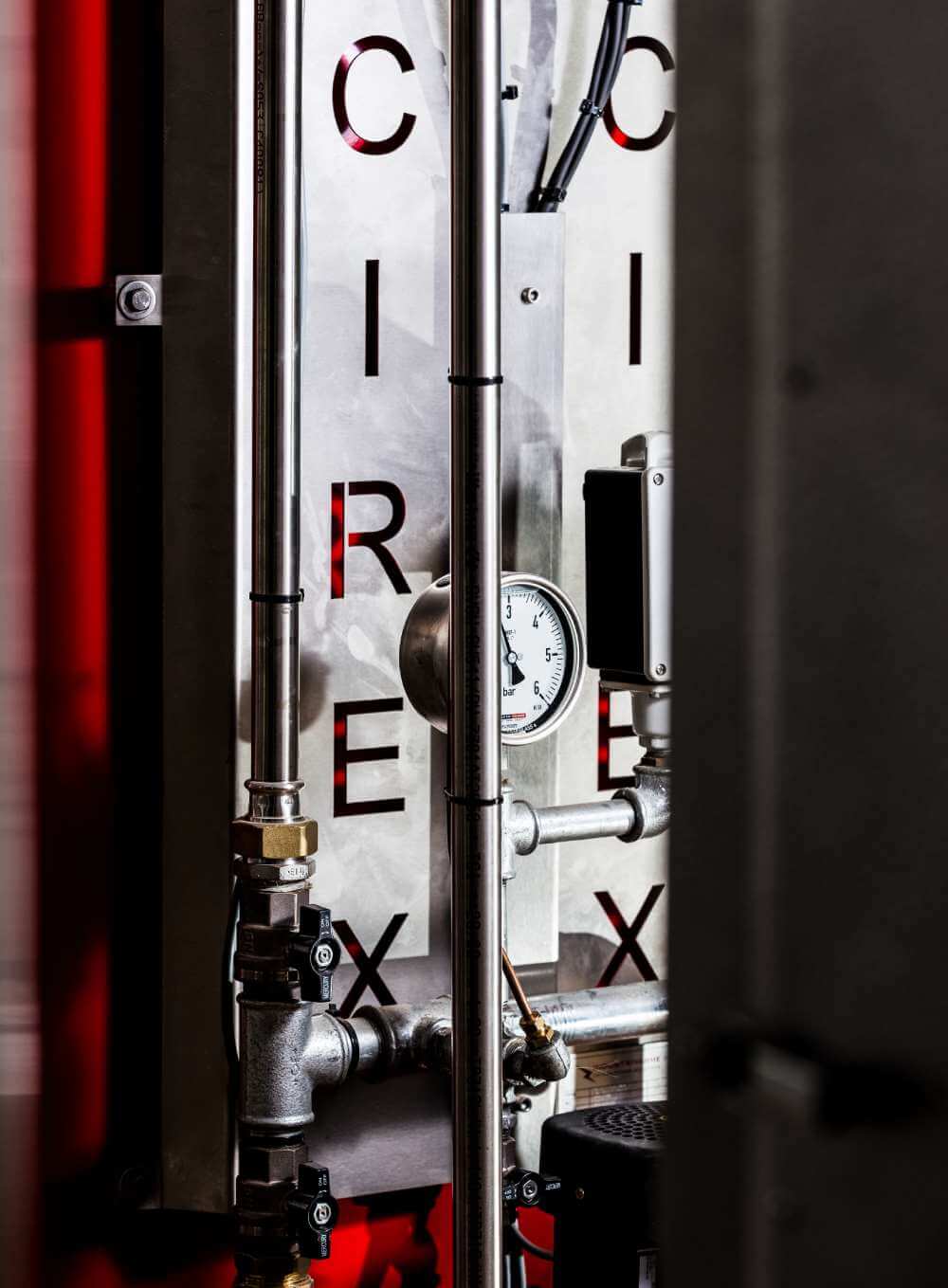

Photos of the CIREX pressurisation unit
Avoid malfunctions in your facility with a service agreement.
We inspect and ensure:
-
control system
-
adjustment and pressure relief valve
-
membrane integrity
Failure in one or more of the above points can result in water loss or corrosion in the piping system.
We are happy to provide a cost estimate or a fixed price for the inspection.
